Industria Duct Panel

Features

Available as SpeedFix Pre-Plumbed Units
Industria Plus (High-Pressure laminate) or Industria (MFC) variants
Removable panels via concealed fixings to allow access to services
2mm ABS edges to match or contrast
Flexible range of panel widths and splits to suit the application
Perfect for commercial buildings, schools, colleges, universities and back-of- house applications
Wide range of plain colours, patterns and woodgrains to choose from

Available in Industria and Industria Plus versions as well as the usual full-height and Mezzo (half-height) variants, the Industria duct panel system is the no-frills work horse of the range.

Both versions are suitable for moderate to high traffic applications although Industria Plus, being manufactured from High-Pressure laminate, is more impact and scratch resistant than the standard Industria which is manufactured from MFC. Both are available as either pre-plumbed units complete with sanitaryware or as a simple panel system to be configured by others.

Applications

Industria, manufactured from MFC is ideal for use in commercial buildings and other back-of-house situations where there are low instances of impact and damage possibility. For higher traffic and impact situations such as colleges, universities or commercial front-of house applications, Industria Plus with its High-Pressure laminate face is preferred. Both versions come equiped with impact resistant 2mm ABS edges to match or contrast and a wide range of available plain colours, patterns and woodgrain decors to choose from.

Manufacture

Industria is manufactured from 18mm Melamine Faced Chipboard whilst Industria Plus panels utilise High-Pressure laminate on an 18mm MR core. Both versions are edged in a 2mm ABS edging and can be made to most normal duct widths and heights and are usually supplied so they butt together on horizontal joints with a matching or contrasting shadowgap detail showing on the vertical section between panels sets. The panels are supplied with concealed fixing clips which allow for access to services behind the duct sets. The associated shadowgap framework is manufactured from High-Pressure laminate on a 36mm MR core to provide ultimate flexibility for system widths and splits.

To complete your project Inscape can also provide:

Complete range of complementary WC Cubicle Systems and Vanity Units
Shower Cubicles, Lockers and Bench Seating also available
Full On-Site installation service
Off-Site Modular Manufacturing
Loose sanitaryware
Stainless Steel Washroom Accessories (soap dispensers, paper towel holders, etc)
Fitted Furniture & Equipment (cabinets, worktops, tray units, etc)
CAD drawings provided as standard
3D visualisations available to support your project

Dimensions

Manufactured in a variety of panel widths to cover any wall length, the Industria and Industria Plus systems can accommodate all variations of individual panel widths and splits to achieve the configurations you require. Panel splits for WC’s, Urinals, Wash Hand Basins, etc., will vary from project to project and a range of typical splits for any given panel type are available to download from our technical section.

Information

	Industria	Industria Plus
Manufacturer	Inscape Interiors Limited, Lower Healey Business Park, Froom Street, Chorley. PR6 9AR	Inscape Interiors Limited, Lower Healey Business Park, Froom Street, Chorley. PR6 9AR
Core Material	19mm melamine face Chipboard	18mm MR MDF (Other core materials available on request)
Colour Ways	19mm melamine face Chipboard	Face side with high pressure laminate from the Abet, Formica or Polyrey WC cubicle ranges. Balancing laminate to reverse
Edge Details	2mm ABS lipping to all exposed edges	2mm ABS lipping to all exposed edges
Panel fixing	Concealed anti-tamper clips	Concealed anti-tamper clips
Sub-frame	30mm Decorative Faced MR MDF	30mm Decorative Faced MR MDF
Hinged (Option)	Panels can be hinged for service access	Panels can be hinged for service access
Pre-Plumbing (Option)	Sanitaryware can be pre-mounted with copper tails to rear	Sanitaryware can be pre-mounted with copper tails to rear

“Panels:
– Type: Manufacturers standard.
– Core material: Moisture resistant MDF
Thickness: 18mm
– Facings: Decorative High Pressure Laminate (HPL) face and balancer to reverse.
Colour / Finish: TBC from Inscapes offered colour brochure.
– Edge Treatment: Matching PVC Square Edged.
“Fasteners:
– Type: Concealed Heavy Load Accessible KEKU Suspension Clipping System
“Frame:
– Core material: Moisture resistant MDF
Thickness: 25mm.
– Facings: Decorative high pressure laminate (HPL) face and balancer to reverse.
Colour / Finish: TBC from Inscapes offered colour brochure

“Options:
– Box Unit frames are free standing and manufactured from 25mm MR MDF with decorative laminate face and balancer to rear.
– Industria Plus Speedfix; 20mm Panels pre-mounted to timber ladder frame installed on a 27mm decorative frame.
– Industria Plus Hinged; 20mm Panels pre-mounted to timber ladder frame with access panels (800mm high max) hinged and installed on a 27mm decorative frame.
– Pre-Plumbed; Sanitary ware, where appropriate, is pre-mounted to panels ready for final connection on site. Please contact us for more details.

Downloads

Industria Plus IPS Technical Sheet

Download

Deyes High School

We were recently appointed to manufacture and install a range of products at Deyes High School in Liverpool, on behalf of Kier Construction.

The wider project involved the demolition of existing buildings on the 13-acre site (apart from the 300-student sixth form), making way for a new 110,000 sq ft facility, which includes indoor and outdoor sports facilities and a part-covered, six-court multi-use games area.

Sefton Council approved the project as part of the government’s £2 billion School Rebuilding Programme. Under the terms, the existing school was to remain in use until the replacement teaching facilities were complete.

Serving the community of Maghull and the surrounding areas, Deyes High School is an oversubscribed school, because it’s the highest-achieving school in the area, providing outstanding levels of teaching and offering exceptional opportunities for all its students.

The modern facility for 1,200 pupils will be net zero carbon once in operation.

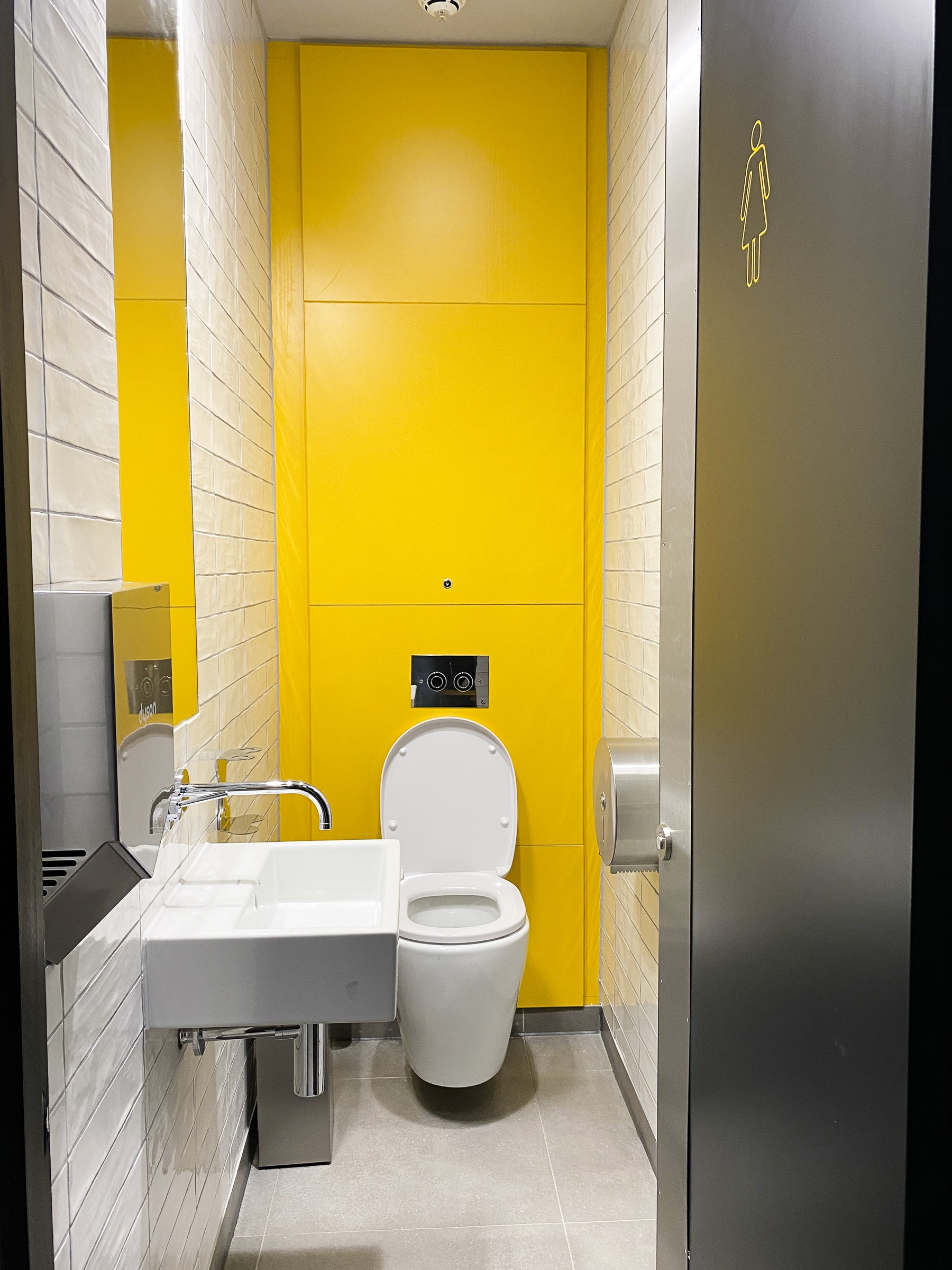

A3 New Bailey
