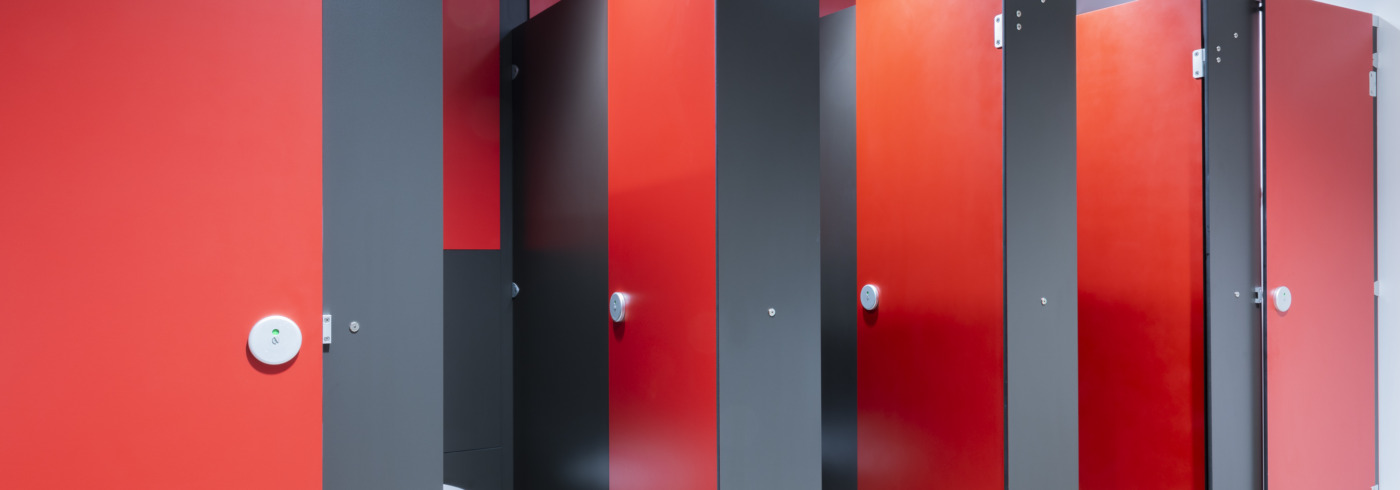

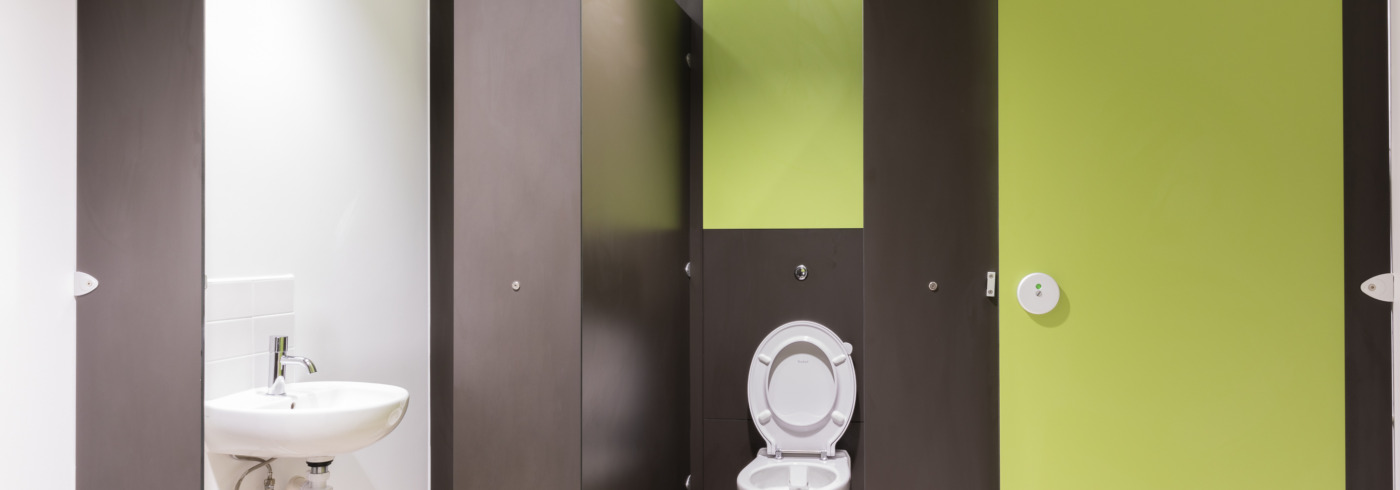

Manufactured from solid grade laminate, Extremus cubicles are a high impact, high durability cubicle system, incredibly difficult to damage, will withstand water and humidity and are easy to clean.
Extremus is also an extremely versatile system, available in various heights, depths and widths depending on application. At standard height ranging from 1950mm – 2100mm, with an extended height cubicle ranging from 2100mm – 2700mm together with various options for reduced floor gaps by introducing smaller pedestal support legs. For fully enclosed systems where privacy is paramount, Extremus is also available full height up to a maximum of 2800mm, floor mounted in channel and head channel closing the system off to ceilings.
Applications
Typical applications include areas such as swimming pools and leisure facilities where the environments are demanding but the client requires an aesthetically pleasing solution. Alternatively prisons, educational centres and public areas will all benefit from the robust nature of the Extremus range, enabling them to combat the extreme conditions these environments can encounter.
Manufacture
Manufactured from 12mm solid grade laminate – which is totally impervious to water and extremely resistant to impact – Extremus cubicles are more than able to withstand the rigours of the most testing environments. The partitions, doors and pilasters have machine radiused, profiled edges which are then polished leaving a feel which is pleasing to the touch and alleviates the sharp edges associated with other designs.
To complete your project Inscape can also provide:
- Complete range of Duct Panel Systems and Vanity Units
- Shower Cubicles, Lockers and Bench Seating also available
- Full On-Site installation service
- Off-Site Modular Manufacturing
- Loose sanitaryware
- Stainless Steel Washroom Accessories (soap dispensers, paper towel holders, etc)
- Fitted Furniture & Equipment (cabinets, worktops, tray units, etc)
- CAD drawings provided as standard
- 3D visualisations available to support your project
Full Height Cubicle
” Frame:
– Height: Maximum of 5mm gap from ceiling level.
– Material/ finish:
Head rail: Aluminium U channel in Satin Anodised Aluminium.
Base rail: Aluminium U channel in Satin Anodised Aluminium.
” Panels:
– Height: Maximum of 5mm gap from ceiling level.
– Floor clearance: 0mm
– Ceiling Clearance: 5mm
– Core material: Solid grade laminate
Thickness: 12/13mm depending on laminate brand.
– Facings: Coloured compact faced both sides.
Colour/ Pattern/ Species: TBC from Inscape offered colour brochure.
– Edge treatment: Crescent Edge Polished Profile.
” Pilasters:
– Height: Maximum of 5mm gap from ceiling level.
– Core material: Solid grade laminate.
Thickness: 12/13mm depending on laminate brand.
– Facings: Coloured compact faced both sides.
Colour/ Pattern/ Species: TBC from Inscape offered colour brochure.
– Edge treatment: Crescent Edge Polished Profile.
” Doors:
– Height: Maximum of 5mm gap from ceiling level.
– Floor clearance: 5mm
– Core material: Solid grade laminate.
Thickness: 12/13mm depending on laminate brand.
– Facings: Coloured compact faced both sides.
Colour/ Pattern/ Species: TBC from Inscape offered colour brochure.
– Edge treatment: Crescent Edge Polished Profile.
– Fixing: Doors are fixed through pilaster for additional support .
“ Ironmongery:
Aluminium rise & fall pivot hinge, coat hook, DDA compliant indicator bolt
with high visibility red and white circular face plate, through fix lozenge plates, integral
door buffer and emergency release facility.
Colour: Satin Anodised Aluminium
Note: Outward opening doors supplied with outward opening keep.
” Accessories:
Coat hook
Extended Height Cubicles
” Frame:
– Type: Manufacturer’s standard.
– Height: 2100mm- 2700mm (Dependent on chosen range of laminate)
– Material/ finish:
Head rail: Aluminium U channel in Satin Anodised Aluminium.
Pedestal leg: Satin Anodised Aluminium Leg, fixed through cubicle division.
” Panels:
– Height (overall): Up to 2700mm (Dependent on chosen range of laminate)
– Floor clearance: 50mm- Ceiling Clearance: 50mm
– Core material: Solid grade laminate
– Thickness: 12/13mm depending on laminate brand.
– Facings: Coloured compact faced both sides.
Colour/ Pattern/ Species: TBC from Inscape offered colour brochure.
– Edge treatment: Crescent Edge Polished Profile.
” Pilasters:
– Height: 2100mm- 2700mm (Dependent on chosen range of laminate)
– Core material: Solid grade laminate.
– Thickness: 12/13mm depending on laminate brand.
– Facings: Coloured compact faced both sides.
Colour/ Pattern/ Species: TBC from Inscape offered colour brochure.
– Edge treatment: Crescent Edge Polished Profile.
” Doors:
– Height: (overall): Up to 2700mm (Dependent on chosen range of laminate)
– Core material: Solid grade laminate.
– Thickness: 12/13mm depending on laminate brand.
– Facings: Coloured compact faced both sides.
Colour/ Pattern/ Species:TBC from Inscape offered colour brochure.
– Edge treatment: Crescent Edge Polished Profile.
– Fixing: Doors are fixed through pilaster for additional support .
“ Ironmongery:
Aluminium rise & fall pivot hinge, coat hook, DDA compliant indicator bolt
with high visibility red and white circular face plate, through fix Lozenge plates, integral
door buffer and Emergency release facility.
Colour: Satin Anodised Aluminium
Note: Outward opening doors supplied with outward opening keep.
” Accessories:
Coat hook
Standard Height Cubicles
” Frame:
– Type: Manufacturer’s standard.
– Height: 1950mm – 2100mm
– Material/ finish:
Head rail: Aluminium U Channel in Satin Anodised Aluminium.
Pedestal leg: Satin Anodised Aluminium Leg, fixed through cubicle division.
” Panels:
– Height (overall): Up to 2100mm
– Floor clearance: 100mm – 150mm
– Core material: Solid grade laminate
Thickness: 12/13mm depending on laminate brand.
– Facings: Coloured compact faced both sides.
Colour/ Pattern/ Species: TBC from Inscape offered colour brochure.
– Edge treatment: Crescent Edge Polished Profile.
” Pilasters:
– Height (overall): Up to 2100mm
– Core material: Solid grade laminate.
Thickness: 12/13mm depending on laminate brand.
– Facings: Coloured compact faced both sides.
Colour/ Pattern/ Species: TBC from Inscape offered colour brochure.
– Edge treatment: Crescent Edge Polished Profile.
” Doors:
– Height: (overall): Up to 2100mm
– Core material: Solid grade laminate.
Thickness: 12/13mm depending on laminate brand.
– Facings: Coloured compact faced both sides.
Colour/ Pattern/ Species: TBC from Inscape offered colour brochure.
– Edge treatment: Crescent Edge Polished Profile.
– Fixing: Doors are fixed through pilaster for additional support .
“ Ironmongery:
Aluminium rise & fall pivot hinge, coat hook, DDA compliant indicator bolt
with high visibility red and white circular face plate, through fix lozenge plates, integral door buffer.
Colour: Satin Anodised Aluminium
Note: Outward opening doors supplied with outward opening keep.
Emergency release facility.
” Accessories:
Coat hook
“ Optional Extras:
Stainless steel fittings can be chosen at additional cost.
Through fix T Nuts.
SAA Fittings can be powder colour coated at an additional cost.
D shaped pull handle available at additional cost.
